• YG 4-48 HSS-EX Spiral Point Plug Tap 3 Flute GH2 Black Ring Tap T4182
1 1

Michigan Wholesale Tool Supply

YG 4-48 HSS-EX Spiral Point Plug Tap 3 Flute GH2 Black Ring Tap T4182

YG 4-48 HSS-EX Spiral Point Plug Tap 3 Flute GH2 Black Ring Tap T4182

$4.00 USD
$0.00 USD $4.00 USD
Sale Sold out
Shipping calculated at checkout.
Free Shipping: Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our Shipping Policy for more details.

Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.

No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.

Low stock: 4 left
YG-1

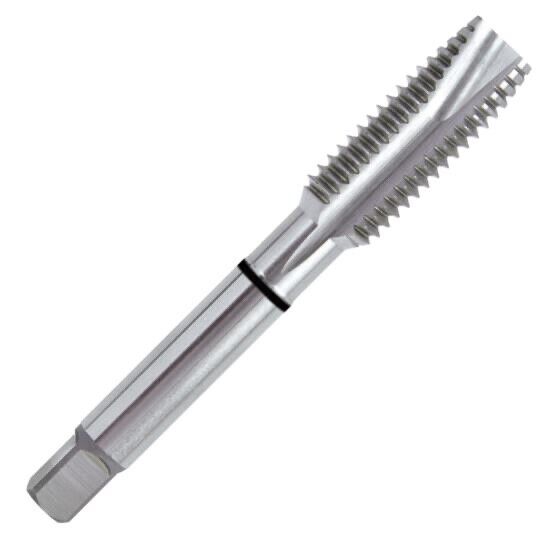

HSS-EX SPIRAL POINT TAP

Product Specifications
EDP Number T4182
Size & Pitch #4-48
Diameter (Decimal Inch) 0.1120"
Diameter (mm) 2.84mm
Overall Length (Decimal Inch) 1.8800"
Length/Diameter 3.0xD
Chamfer Type Plug
Overall Length (mm) 47.75mm
Thread Length (Decimal Inch) 0.3350"
Thread Length (mm) 8.51mm
Square Length (Decimal Inch) 0.1900"
Square Length (mm) 4.83mm
Shank Diameter (Decimal Inch) 0.1410"
Shank Diameter (mm) 3.58mm
Square Size (Decimal Inch) 0.1100"
Square Size (mm) 2.79mm
Neck Diameter (Decimal Inch) 0.0770"
Connection (mm) 3.58 x 2.79mm
Connection (Decimal Inch) 0.141 x 0.11"
Useable Length (Decimal Inch) 0.5630"
Neck Diameter (mm) 1.96mm
Drill Size (Decimal Inch) 0.0931"
Drill Size (mm) 2.36mm
Useable Length (mm) 14.30mm
Thread Series UNF
Pitch Limit H2
Chamfer Length 4P-5P
Finish Bright
Blank Standard 302A
Helix Angle (Degree) 0 Degree
Number of Flutes 2
Tap Type SPPT
Shank Type Square
Coolant Through No
Ring Color Black
Trade Name Combo Tap
Series T4
Material HSS-EX
Product Type Spiral Point Tap
View full details
