Michigan Wholesale Tool Supply

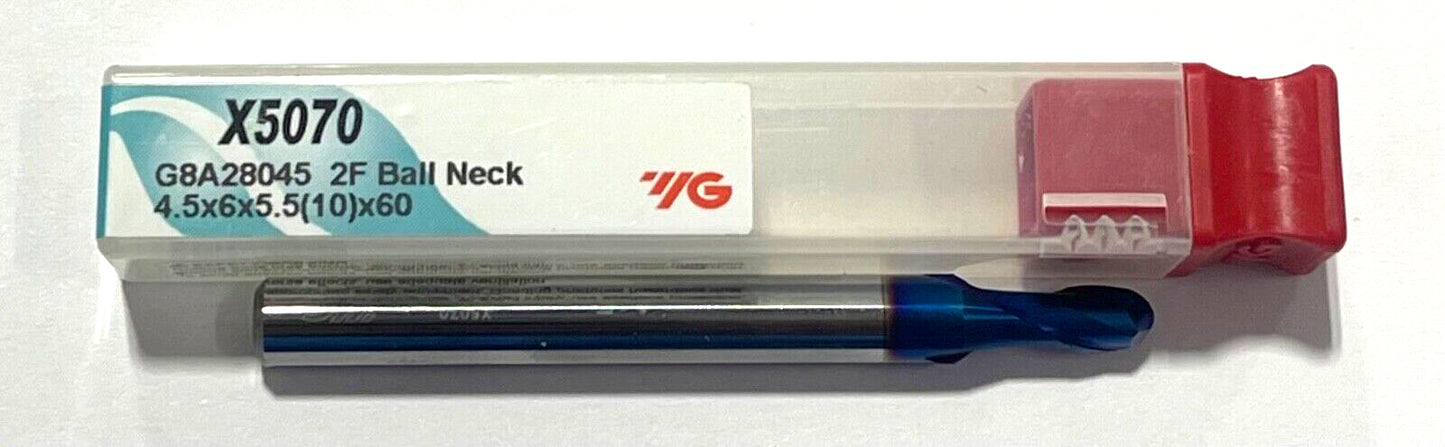

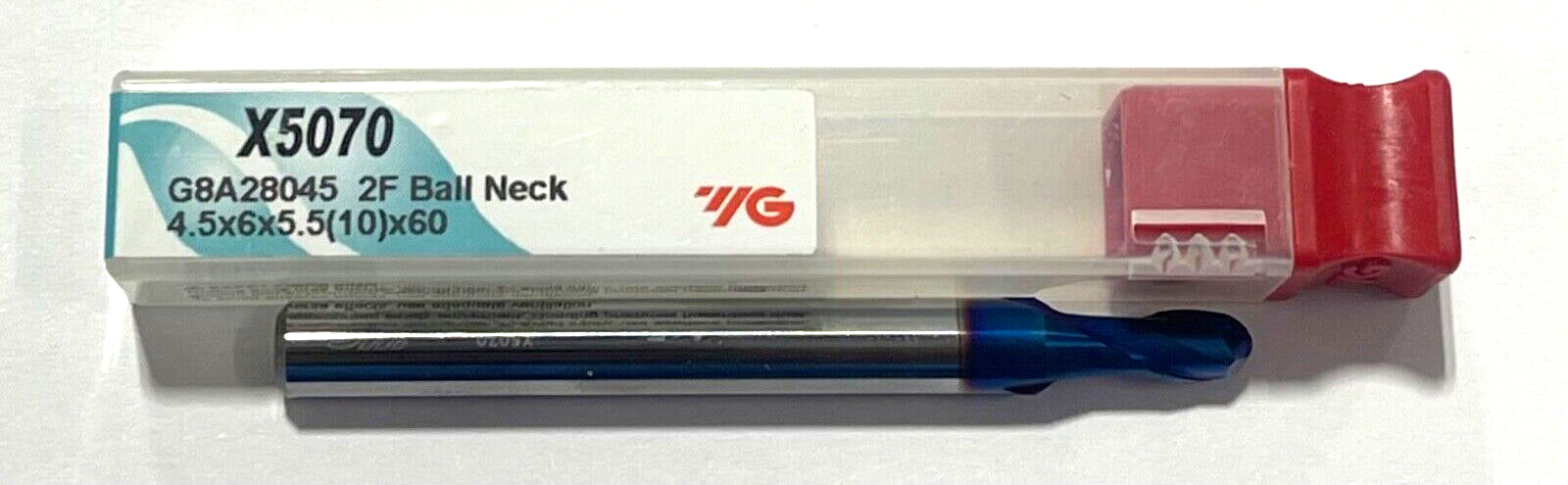

YG 4.5mm Carbide Ball Nose End Mill Blue Coating 2 Flute Neck Relief
YG 4.5mm Carbide Ball Nose End Mill Blue Coating 2 Flute Neck Relief
Regular price
$12.01 USD
Regular price
$0.00 USD
Sale price
$12.01 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 9 left
Couldn't load pickup availability
YG-1
SOLID CARBIDE BALL NOSE END MILL
| Cutting Diameter (DC) | 4.5 mm | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 5.5 mm |
| Depth of Cut Maximum (APMX) | 10 mm | Applicable Material | | Steel | Hard Materials | |
| Overall Length (OAL) | 60 mm | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.1772″ |
| Coating | Blue Coating | Measurement Type | Metric |
| Flute Count (NOF) | 2 | Series/List # | G8A28 |
| Flute Helix Angle (FHA) | 30 Degrees |
