Michigan Wholesale Tool Supply

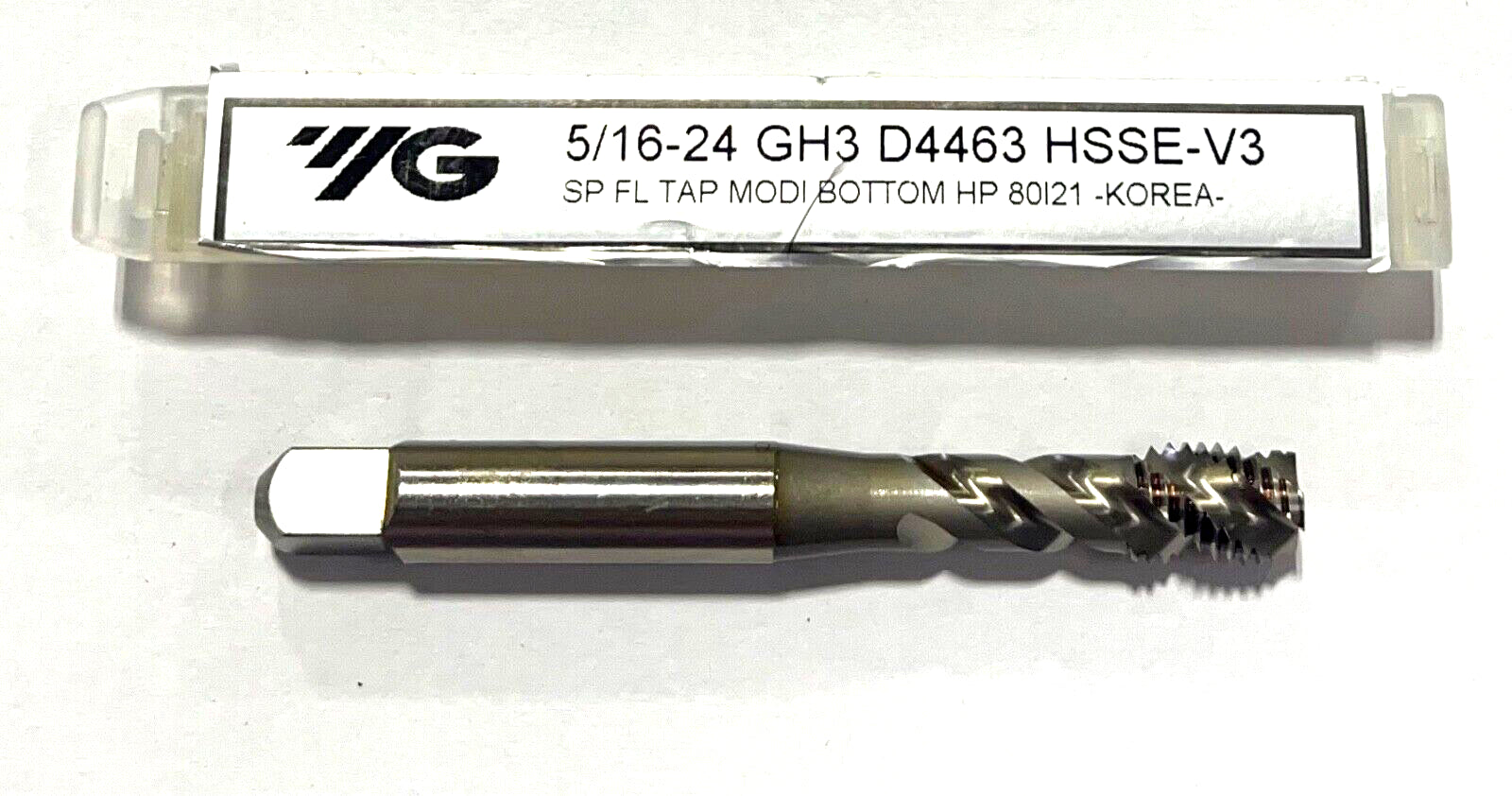

YG 5/16"-24 HSSE-V3 Spiral Flute Tap 3FL GH3 Modified Bottoming Tap
YG 5/16"-24 HSSE-V3 Spiral Flute Tap 3FL GH3 Modified Bottoming Tap
Regular price
$5.09 USD
Regular price
$0.00 USD
Sale price
$5.09 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 2 left
Couldn't load pickup availability
YG
HSS-PM SPIRAL FLUTE MODIFIED BOTTOMING TAP
| Thread Diameter Size (TDZ) | 5/16″ | Thread Tolerance Class (TCTR) | | H3 | |
| Threads per Inch (TPI) | 24 | Tool Type | Spiral Flute Tap |
| Thread Standard | | UNF | | Chamfer | 2P-3P |
| Overall Length (OAL) | 2.72″ | Coating | Bright |
| Thread Cutting Part Length (THL) | 0.394″ | End Shape | Modified Bottoming |
| Usable Length (LU) | 1.126″ | Length Group | 2.5D |
| Connection Diameter Machine Side (DCONMS) | 0.318″ | Square Size | 0.238″ |
| Flute Count (NOF) | 3 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 45 Degrees | Tapping Prehole Diameter (Pre-hole) | 0.274″ |
| Cutting Edge Material | HSSE-V3 | Series/List # | D4 |
