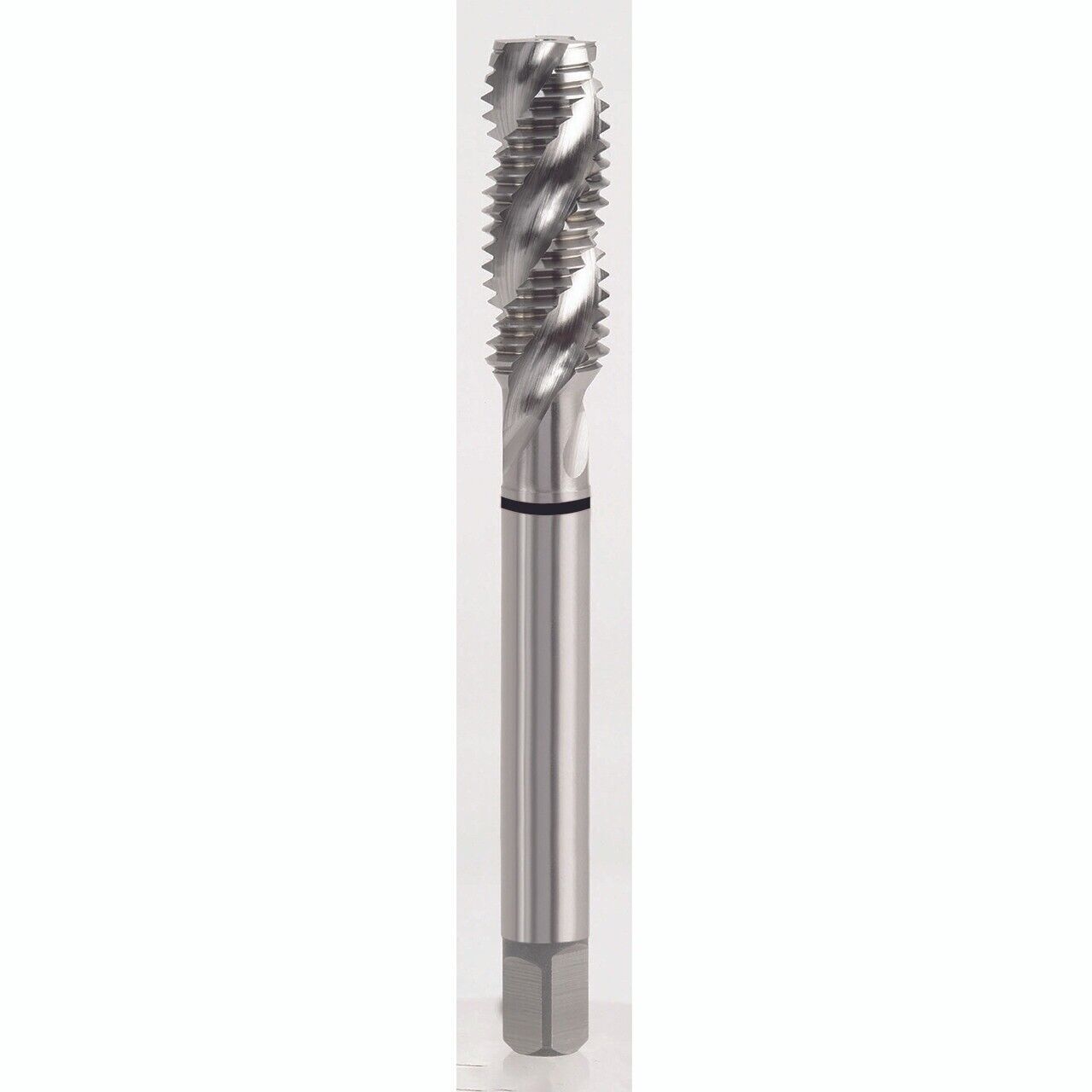

• YG 5-44 HSS-EX Spiral Flute Tap 3 Flute H2 Modified Bottoming Black Ring Tap
1 1

Michigan Wholesale Tool Supply

YG 5-44 HSS-EX Spiral Flute Tap 3 Flute H2 Modified Bottoming Black Ring Tap

YG 5-44 HSS-EX Spiral Flute Tap 3 Flute H2 Modified Bottoming Black Ring Tap

$4.36 USD
$0.00 USD $4.36 USD
Sale Sold out
Shipping calculated at checkout.
Free Shipping: Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our Shipping Policy for more details.

Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.

No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.

Low stock: 3 left
YG-1

HSS-EX SPIRAL FLUTE MODIFIED BOTTOMING TAP

Product Specifications
EDP Number T2222
Size & Pitch #5-44
Diameter (Decimal Inch) 0.1250"
Diameter (mm) 3.18mm
Overall Length (Decimal Inch) 1.9400"
Length/Diameter 2.5xD
Chamfer Type Modified Bottoming
Overall Length (mm) 49.28mm
Thread Length (Decimal Inch) 0.2360"
Thread Length (mm) 5.99mm
Square Length (Decimal Inch) 0.1900"
Square Length (mm) 4.83mm
Shank Diameter (Decimal Inch) 0.1410"
Shank Diameter (mm) 3.58mm
Square Size (Decimal Inch) 0.1100"
Square Size (mm) 2.79mm
Neck Diameter (Decimal Inch) 0.0900"
Connection (mm) 3.58 x 2.79mm
Connection (Decimal Inch) 0.141 x 0.11"
Useable Length (Decimal Inch) 0.6260"
Neck Diameter (mm) 2.29mm
Drill Size (Decimal Inch) 0.1043"
Drill Size (mm) 2.65mm
Useable Length (mm) 15.90mm
Thread Series UNF
Pitch Limit H2
Chamfer Length 2P-3P
Finish Bright
Blank Standard 302A
Helix Angle (Degree) 40 Degree
Number of Flutes 3
Tap Type SPFL
Shank Type Square
Coolant Through No
Ring Color Black
Trade Name Combo Tap
Series T2
Material HSS-EX
Product Type Spiral Flute Tap
View full details
