Michigan Wholesale Tool Supply

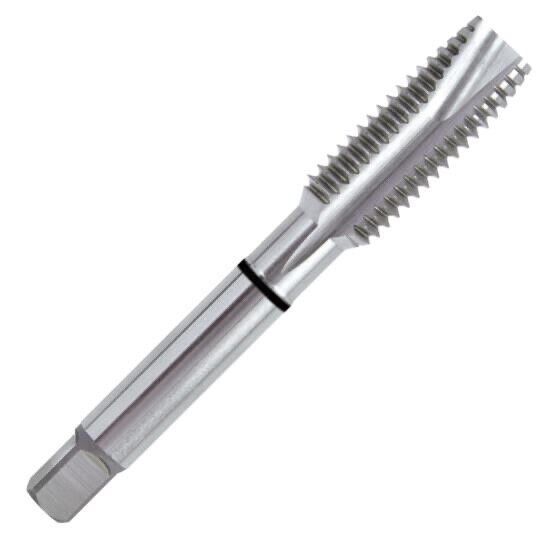

YG 5-44 HSS-EX Spiral Point Plug Tap 3 Flute GH3 Black Ring Tap T4503
YG 5-44 HSS-EX Spiral Point Plug Tap 3 Flute GH3 Black Ring Tap T4503
Regular price
$5.09 USD
Regular price
$0.00 USD
Sale price
$5.09 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 3 left
Couldn't load pickup availability
YG-1
HSS-EX SPIRAL POINT TAP
Product Specifications
| EDP Number | T4503 |
| Size & Pitch | 3/8-24 |
| Diameter (Decimal Inch) | 0.3750" |
| Diameter (mm) | 9.53mm |
| Overall Length (Decimal Inch) | 2.9400" |
| Length/Diameter | 3.0xD |
| Chamfer Type | Plug |
| Overall Length (mm) | 74.68mm |
| Thread Length (Decimal Inch) | 0.7480" |
| Thread Length (mm) | 19.00mm |
| Square Length (Decimal Inch) | 0.4400" |
| Square Length (mm) | 11.18mm |
| Shank Diameter (Decimal Inch) | 0.3810" |
| Shank Diameter (mm) | 9.68mm |
| Square Size (Decimal Inch) | 0.2860" |
| Square Size (mm) | 7.26mm |
| Neck Diameter (Decimal Inch) | 0.3160" |
| Connection (mm) | 9.68 x 7.26mm |
| Connection (Decimal Inch) | 0.381 x 0.286" |
| Useable Length (Decimal Inch) | 1.2520" |
| Neck Diameter (mm) | 8.03mm |
| Drill Size (Decimal Inch) | 0.3371" |
| Drill Size (mm) | 8.56mm |
| Useable Length (mm) | 31.80mm |
| Thread Series | UNF |
| Pitch Limit | H3 |
| Chamfer Length | 4P-5P |
| Finish | Bright |
| Blank Standard | 302A |
| Helix Angle (Degree) | 0 Degree |
| Number of Flutes | 3 |
| Tap Type | SPPT |
| Shank Type | Square |
| Coolant Through | No |
| Ring Color | Black |
| Trade Name | Combo Tap |
| Series | T4 |
| Material | HSS-EX |
| Product Type | Spiral Point Tap |
