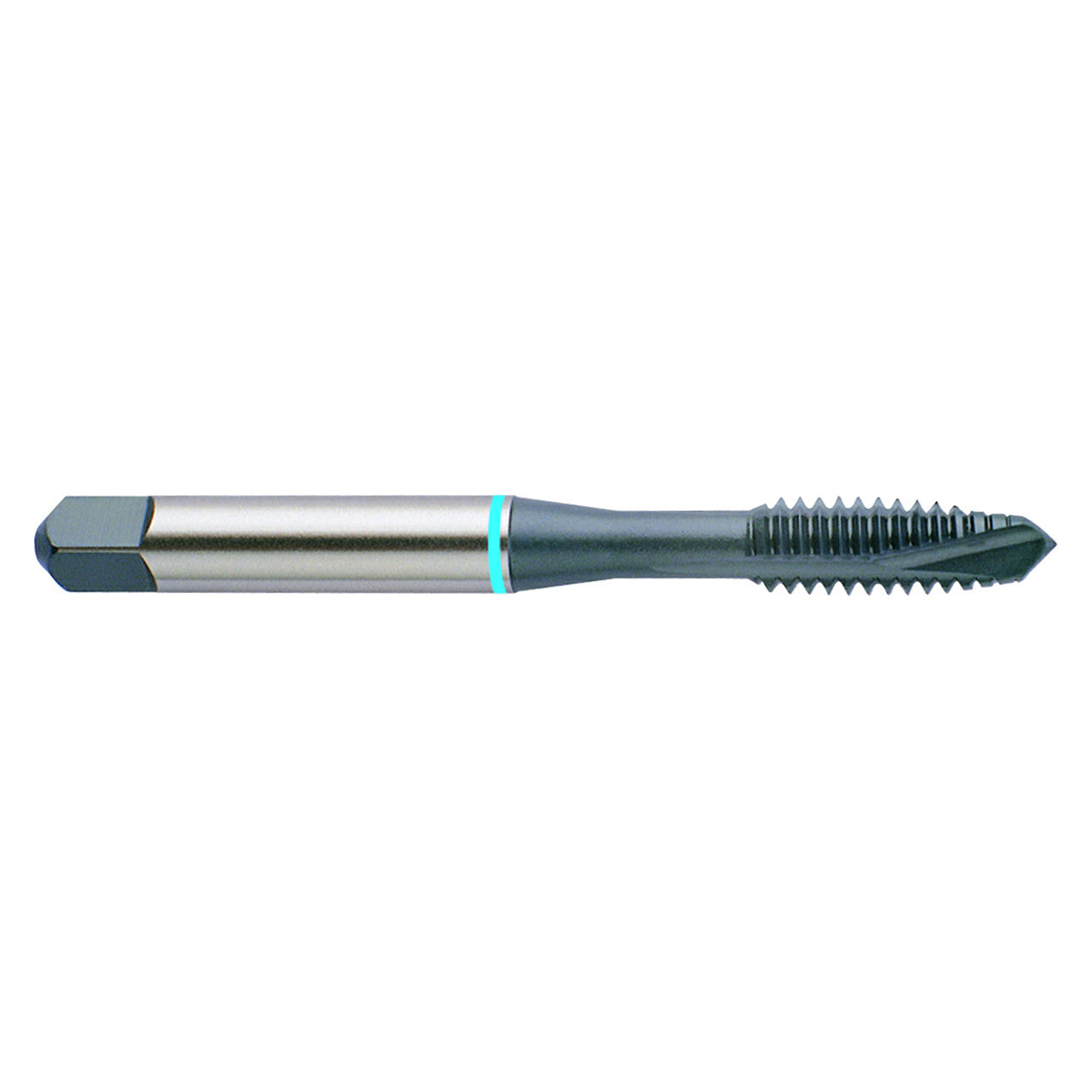

YG 7/16"-20 Super HSS Spiral Point Plug Tap GH3 Steam Oxide Blue Ring
YG 7/16"-20 Super HSS Spiral Point Plug Tap GH3 Steam Oxide Blue Ring
Regular price
$7.41 USD
Regular price
$0.00 USD
Sale price
$7.41 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 10 left
Couldn't load pickup availability
| Diameter (Decimal Inch) | M9543 |
| Diameter (Decimal Inch) | 0.4375" |
| Diameter (mm) | 11.11mm |
| Overall Length (Decimal Inch) | 3.1600" |
| Overall Length (mm) | 80.30mm |
| Thread Length (Decimal Inch) | 0.8660" |
| Thread Length (mm) | 22.00mm |
| Square Length (Decimal Inch) | 0.4100" |
| Square Length (mm) | 10.40mm |
| Shank Diameter (Decimal Inch) | 0.3230" |
| Shank Diameter (mm) | 8.20mm |
| Square Size (Decimal Inch) | 0.2420" |
| Square Size (mm) | 6.15mm |
| Neck Diameter (Decimal Inch) | 0.0610" |
| Neck Diameter (mm) | 7.90mm |
| Number of Flutes | 3 |
| Size & Pitch | 7/16-20" |
| Tap Type | SPPT |
| Size | 7/16" |
| Pitch | 20 TPI |
| Thread Series | UNF |
| Pitch Limit | H3 |
| Chamfer Type | Plug |
| Chamfer Length | 4P-5P |
| Finish | Steam Oxide |
| Material | Super HSS |
| Blank Standard | 302A |
| Helix Angle | 0 Degree |
| Length/Diameter | 3.0XD |
| Useable Length (Decimal Inch) | 1.4370" |
| Useable Length (mm) | 36.50mm |
| Product Type | Spiral Flute Tap |
