Michigan Wholesale Tool Supply

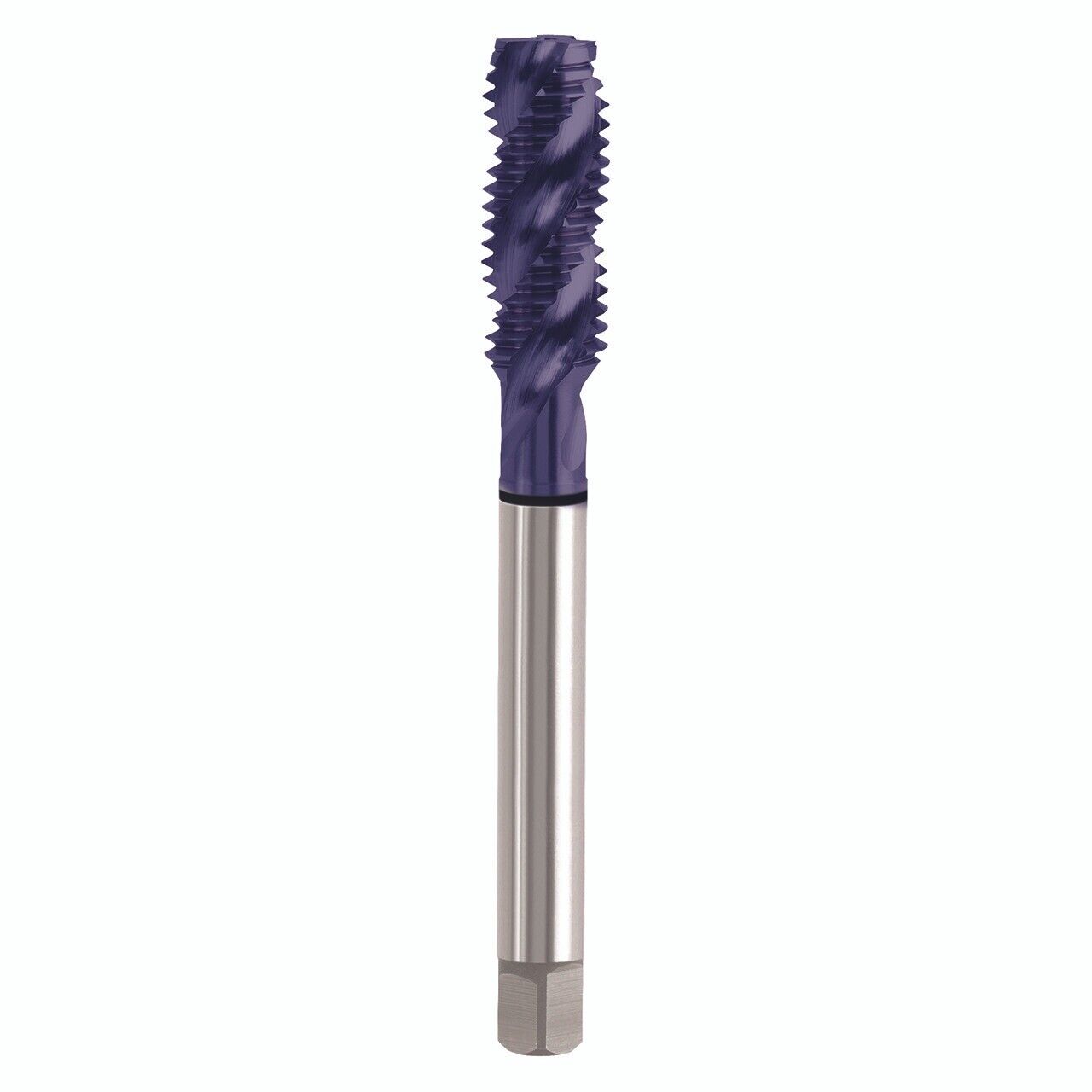

YG 7/8"-14 HSS-EX Spiral Flute Tap 3 Flute H6 Modified Bottoming Black Ring TiCN
YG 7/8"-14 HSS-EX Spiral Flute Tap 3 Flute H6 Modified Bottoming Black Ring TiCN
Regular price
$18.56 USD
Regular price
$0.00 USD
Sale price
$18.56 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 8 left
Couldn't load pickup availability
YG-1
HSS-EX SPIRAL FLUTE MODIFIED BOTTOMING TAP
| EDP Number | T2766C |
| Size & Pitch | 7/8-14 |
| Diameter (Decimal Inch) | 0.8750" |
| Diameter (mm) | 22.23mm |
| Overall Length (Decimal Inch) | 4.6900" |
| Length/Diameter | 2.5xD |
| Chamfer Type | Modified Bottoming |
| Overall Length (mm) | 119.13mm |
| Thread Length (Decimal Inch) | 0.7090" |
| Thread Length (mm) | 18.01mm |
| Square Length (Decimal Inch) | 0.7500" |
| Square Length (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.6970" |
| Shank Diameter (mm) | 17.70mm |
| Square Size (Decimal Inch) | 0.5230" |
| Square Size (mm) | 13.28mm |
| Neck Diameter (Decimal Inch) | 0.6850" |
| Connection (mm) | 17.7 x 13.28mm |
| Connection (Decimal Inch) | 0.697 x 0.523" |
| Useable Length (Decimal Inch) | 2.8150" |
| Neck Diameter (mm) | 17.40mm |
| Drill Size (Decimal Inch) | 0.8101" |
| Drill Size (mm) | 20.58mm |
| Useable Length (mm) | 71.50mm |
| Thread Series | UNF |
| Pitch Limit | H6 |
| Chamfer Length | 2P-3P |
| Finish | TICN |
| Blank Standard | 302A |
| Helix Angle (Degree) | 40 Degree |
| Number of Flutes | 4 |
| Tap Type | SPFL |
| Shank Type | Square |
| Coolant Through | No |
| Ring Color | Black |
| Trade Name | Combo Tap |
| Series | T2-C |
| Material | HSS-EX |
| Product Type | Spiral Flute Bottom Tap |
