Michigan Wholesale Tool Supply

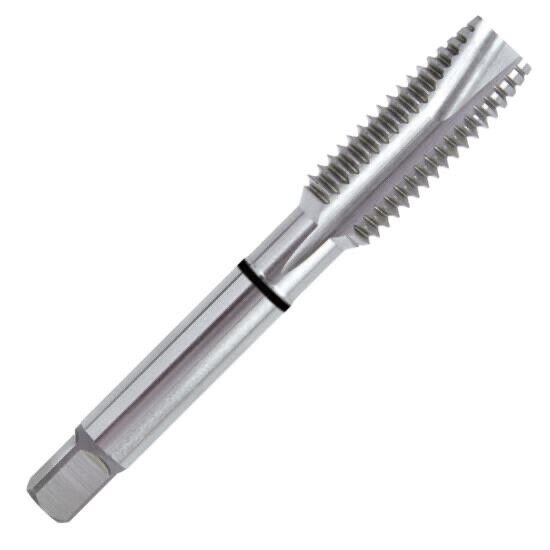

YG 7/8"-9 HSS-EX Spiral Point Plug Tap 3 Flute GH6 Black Ring Tap T4746
YG 7/8"-9 HSS-EX Spiral Point Plug Tap 3 Flute GH6 Black Ring Tap T4746
Regular price
$14.92 USD
Regular price
$0.00 USD
Sale price
$14.92 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 2 left
Couldn't load pickup availability
YG-1
HSS-EX SPIRAL POINT TAP
| EDP Number | T4746 |
| Size & Pitch | 7/8-9 |
| Diameter (Decimal Inch) | 1.0000" |
| Diameter (mm) | 25.40mm |
| Overall Length (Decimal Inch) | 4.6900" |
| Length/Diameter | 3.0xD |
| Chamfer Type | Plug |
| Overall Length (mm) | 119.13mm |
| Thread Length (Decimal Inch) | 1.3390" |
| Thread Length (mm) | 34.01mm |
| Square Length (Decimal Inch) | 0.7500" |
| Square Length (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.6970" |
| Shank Diameter (mm) | 17.70mm |
| Square Size (Decimal Inch) | 0.5230" |
| Square Size (mm) | 13.28mm |
| Neck Diameter (Decimal Inch) | 0.6850" |
| Connection (mm) | 17.7 x 13.28mm |
| Connection (Decimal Inch) | 0.697 x 0.523" |
| Useable Length (Decimal Inch) | 2.2200" |
| Neck Diameter (mm) | 17.40mm |
| Drill Size (Decimal Inch) | 0.8990" |
| Drill Size (mm) | 22.83mm |
| Useable Length (mm) | 56.39mm |
| Thread Series | UNC |
| Pitch Limit | H6 |
| Chamfer Length | 4P-5P |
| Finish | Bright |
| Blank Standard | 302A |
| Helix Angle (Degree) | 0 Degree |
| Number of Flutes | 3 |
| Tap Type | SPPT |
| Shank Type | Square |
| Coolant Through | No |
| Ring Color | Black |
| Trade Name | Combo Tap |
| Series | T4 |
| Material | HSS-EX |
| Product Type | Spiral Point Tap |
