Michigan Wholesale Tool Supply

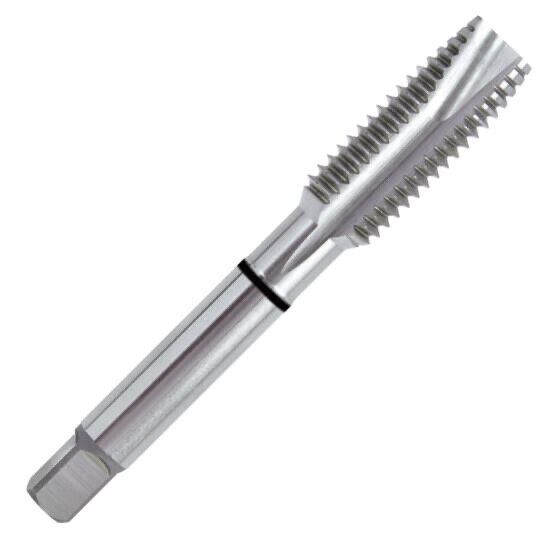

YG 8-36 HSS-EX Spiral Point Plug Tap 3 Flute GH3 Black Ring Tap T4383
YG 8-36 HSS-EX Spiral Point Plug Tap 3 Flute GH3 Black Ring Tap T4383
Regular price
$4.36 USD
Regular price
$0.00 USD
Sale price
$4.36 USD
Unit price
/
per
Shipping calculated at checkout.
15 in stock
Couldn't load pickup availability
YG-1
HSS-EX SPIRAL POINT PLUG TAP
| EDP Number | T4383 |
| Size & Pitch | #12-28 |
| Diameter (Decimal Inch) | 0.2160" |
| Diameter (mm) | 5.49mm |
| Overall Length (Decimal Inch) | 2.3800" |
| Length/Diameter | 3.0xD |
| Chamfer Type | Plug |
| Overall Length (mm) | 60.45mm |
| Thread Length (Decimal Inch) | 0.5710" |
| Thread Length (mm) | 14.5mm |
| Square Length (Decimal Inch) | 0.2800" |
| Square Length (mm) | 7.11mm |
| Shank Diameter (Decimal Inch) | 0.2200" |
| Shank Diameter (mm) | 5.59mm |
| Square Size (Decimal Inch) | 0.1650" |
| Square Size (mm) | 4.19mm |
| Neck Diameter (Decimal Inch) | 0.1660" |
| Connection (mm) | 5.59 x 4.19mm |
| Connection (Decimal Inch) | 0.22 x 0.165" |
| Useable Length (Decimal Inch) | 0.9060" |
| Neck Diameter (mm) | 4.22mm |
| Drill Size (Decimal Inch) | 0.1835" |
| Drill Size (mm) | 4.66mm |
| Useable Length (mm) | 23.01mm |
| Thread Series | UNF |
| Pitch Limit | H3 |
| Chamfer Length | 4P-5P |
| Finish | Bright |
| Blank Standard | 302A |
| Helix Angle (Degree) | 0 Degree |
| Number of Flutes | 3 |
| Tap Type | SPPT |
| Shank Type | Square |
| Coolant Through | No |
| Ring Color | Black |
| Trade Name | Combo Tap |
| Series | T4 |
| Material | HSS-EX |
| Product Type | Spiral Point Tap |
