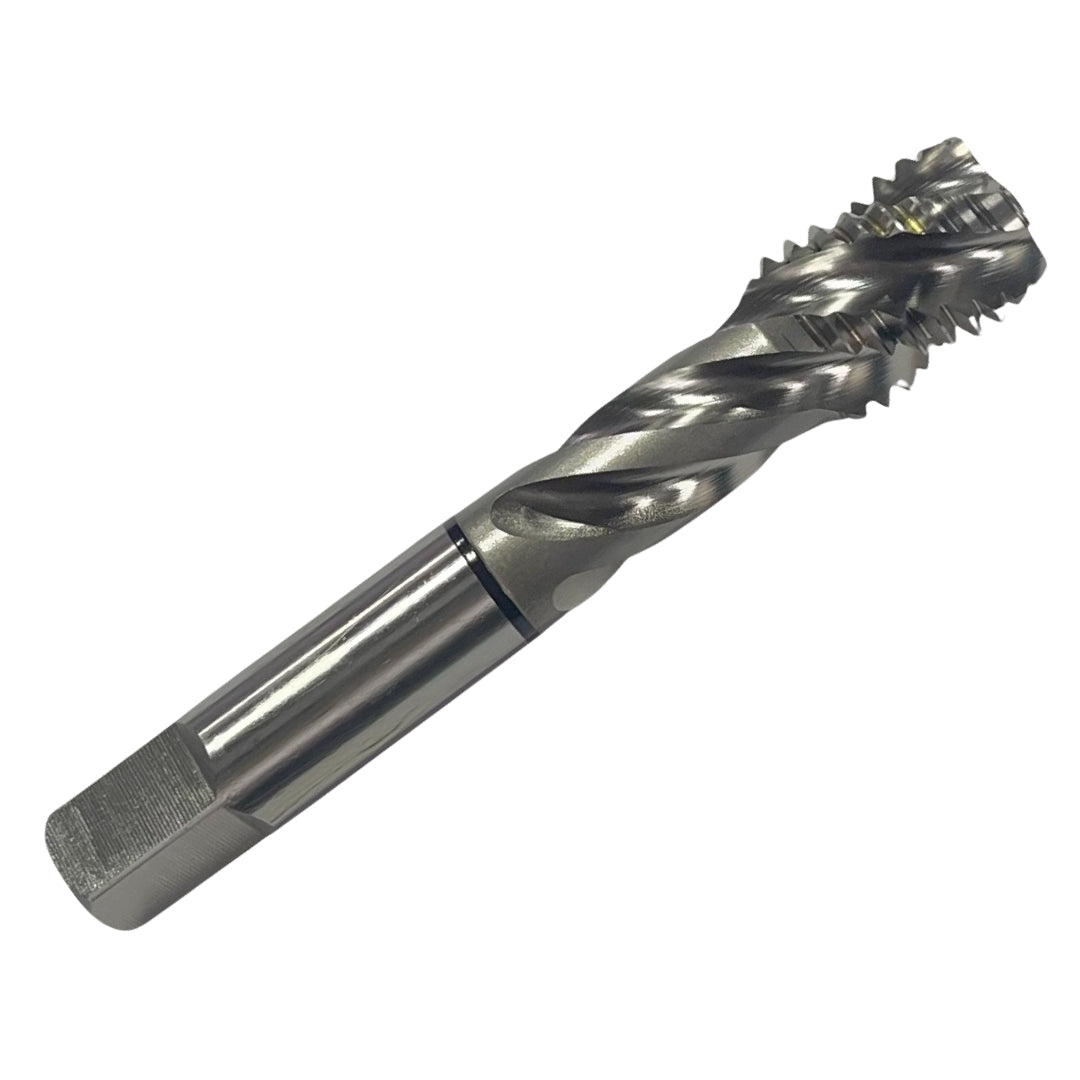

YG M14 x 2mm HSS-EX Spiral Flute Tap Black Ring Modified Bottoming 3FL D7 Tap
YG M14 x 2mm HSS-EX Spiral Flute Tap Black Ring Modified Bottoming 3FL D7 Tap
Regular price
$10.55 USD
Regular price
$0.00 USD
Sale price
$10.55 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 2 left
Couldn't load pickup availability
YG-1
HSS-EX SPIRAL FLUTE MODIFIED BOTTOMING TAP
Product Specifications
| EDP Number | T5547 |
| Size & Pitch | M14x2 |
| Diameter (Decimal Inch) | 0.5512" |
| Diameter (mm) | 14.00mm |
| Overall Length (Decimal Inch) | 3.5900" |
| Length/Diameter | 2.5xD |
| Chamfer Type | Modified Bottoming |
| Overall Length (mm) | 91.19mm |
| Thread Length (Decimal Inch) | 0.7090" |
| Thread Length (mm) | 18.01mm |
| Square Length (Decimal Inch) | 0.5000" |
| Square Length (mm) | 12.70mm |
| Shank Diameter (Decimal Inch) | 0.4290" |
| Shank Diameter (mm) | 10.90mm |
| Square Size (Decimal Inch) | 0.3220" |
| Square Size (mm) | 8.18mm |
| Neck Diameter (Decimal Inch) | 0.4170" |
| Connection (mm) | 10.9 x 8.18mm |
| Connection (Decimal Inch) | 0.429 x 0.322" |
| Useable Length (Decimal Inch) | 2.0670" |
| Neck Diameter (mm) | 10.59mm |
| Drill Size (Decimal Inch) | 0.4796" |
| Drill Size (mm) | 12.18mm |
| Useable Length (mm) | 52.50mm |
| Thread Series | M |
| Pitch Limit | D7 |
| Chamfer Length | 2P-3P |
| Finish | Bright |
| Blank Standard | 302A |
| Helix Angle (Degree) | 40 Degree |
| Number of Flutes | 3 |
| Tap Type | SPFL |
| Shank Type | Square |
| Coolant Through | No |
| Ring Color | Black |
| Trade Name | Combo Tap |
| Series | T5 |
| Material | HSS-EX |
| Product Type | Spiral Flute Tap |
