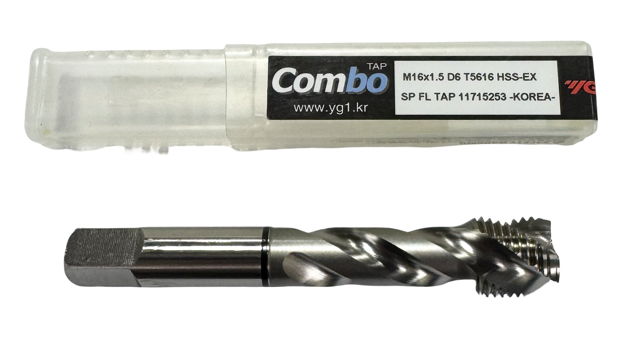

YG M16 x 1.5mm HSS-Ex Spiral Flute Tap, Modified Bottoming, 3FL, D6, Black-Ring

PRODUCT DESCRIPTION

Description	Spiral Flute Tap; M16 x 1.5 mm ; 96.77 mm OAL ; 3 FL ; HSS-EX ; Uncoated ; D6 ; Series T5
Brand	YG-1 Cutting Tools
Chamfer	2P-3P
Coating	Bright
Connection Diameter Machine Side Dconms	0.48"
Coolant Supply Property CSP	No
Cutting Edge Material	HSS-EX
End Shape	Modified Bottoming
Flute Count Nof	3
Flute Helix Angle Fha	40 Degrees
Length Group	2.5D
Measurement Type	Inch
Overall Length Oal	3.81"
Serieslist	T5
Special Feature	Black Ring
Thread Cutting Part Length THL	0.551"
Thread Diameter Size TDZ	M16
Thread Pitch TP	1.5 mm
Thread Standard	MF
Thread Tolerance Class TCTR	D6
Tool Type	Spiral Flute Tap
Usable Length Lu	2.205"
