Michigan Wholesale Tool Supply

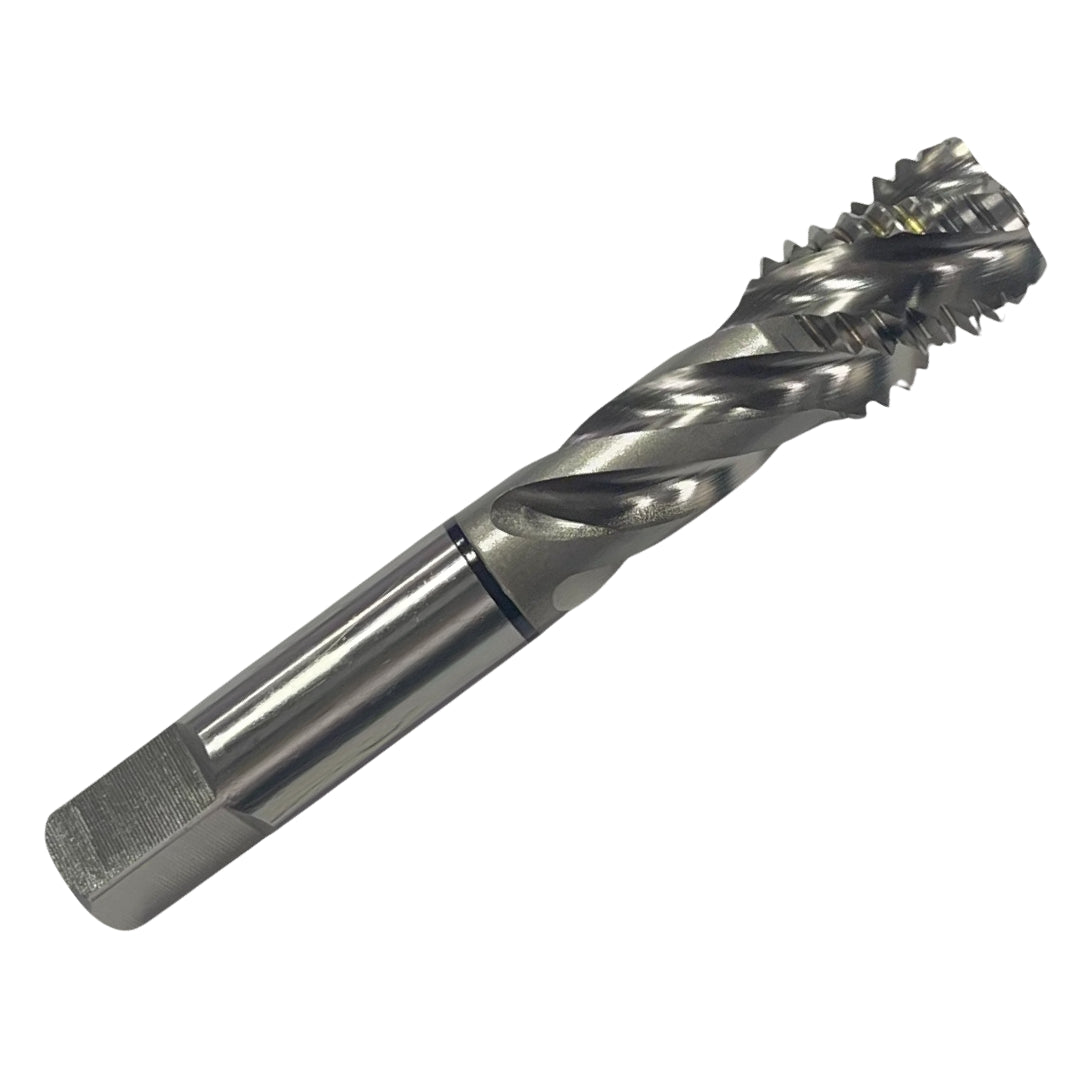

YG M22 x 2.5mm HSS-EX Spiral Flute Tap Black Ring Modified Bottoming 4FL D7 Tap
YG M22 x 2.5mm HSS-EX Spiral Flute Tap Black Ring Modified Bottoming 4FL D7 Tap
Regular price
$19.29 USD
Regular price
$0.00 USD
Sale price
$19.29 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 5 left
Couldn't load pickup availability
YG-1
HSS-EX SPIRAL FLUTE MODIFIED BOTTOMING TAP
Product Specifications
| EDP Number | T5747 |
| Size & Pitch | M22x2.5 |
| Diameter (Decimal Inch) | 0.8661" |
| Diameter (mm) | 22.00mm |
| Overall Length (Decimal Inch) | 4.6900" |
| Length/Diameter | 2.5xD |
| Chamfer Type | Modified Bottoming |
| Overall Length (mm) | 119.13mm |
| Thread Length (Decimal Inch) | 0.7870" |
| Thread Length (mm) | 19.99mm |
| Square Length (Decimal Inch) | 0.7500" |
| Square Length (mm) | 19.05mm |
| Shank Diameter (Decimal Inch) | 0.6970" |
| Shank Diameter (mm) | 17.70mm |
| Square Size (Decimal Inch) | 0.5230" |
| Square Size (mm) | 13.28mm |
| Neck Diameter (Decimal Inch) | 0.6850" |
| Connection (mm) | 17.7 x 13.28mm |
| Connection (Decimal Inch) | 0.697 x 0.523" |
| Useable Length (Decimal Inch) | 2.8150" |
| Neck Diameter (mm) | 17.40mm |
| Drill Size (Decimal Inch) | 0.7766" |
| Drill Size (mm) | 19.73mm |
| Useable Length (mm) | 71.50mm |
| Thread Series | M |
| Pitch Limit | D7 |
| Chamfer Length | 2P-3P |
| Finish | Bright |
| Blank Standard | 302A |
| Helix Angle (Degree) | 40 Degree |
| Number of Flutes | 4 |
| Tap Type | SPFL |
| Shank Type | Square |
| Coolant Through | No |
| Ring Color | Black |
| Trade Name | Combo Tap |
| Series | T5 |
| Material | HSS-EX |
| Product Type | Spiral Flute Tap |
