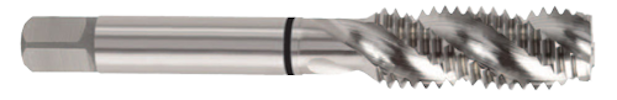

YG M3.5 x 0.6mm HSS-EX Spiral Flute Tap Black Ring Modified Bottoming 3FL D4 Tap
YG M3.5 x 0.6mm HSS-EX Spiral Flute Tap Black Ring Modified Bottoming 3FL D4 Tap
Regular price
$4.73 USD
Regular price
$0.00 USD
Sale price
$4.73 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 3 left
Couldn't load pickup availability
YG-1
HSS-EX SPIRAL FLUTE MODIFIED BOTTOMING TAP
| EDP Number | T5224 |
| Size & Pitch | M3.5x0.6 |
| Diameter (Decimal Inch) | 0.1378" |
| Diameter (mm) | 3.50mm |
| Overall Length (Decimal Inch) | 2.0000" |
| Length/Diameter | 2.5xD |
| Chamfer Type | Modified Bottoming |
| Overall Length (mm) | 50.80mm |
| Thread Length (Decimal Inch) | 0.2760" |
| Thread Length (mm) | 7.01mm |
| Square Length (Decimal Inch) | 0.1900" |
| Square Length (mm) | 4.83mm |
| Shank Diameter (Decimal Inch) | 0.1410" |
| Shank Diameter (mm) | 3.58mm |
| Square Size (Decimal Inch) | 0.1100" |
| Square Size (mm) | 2.79mm |
| Neck Diameter (Decimal Inch) | 0.1040" |
| Connection (mm) | 3.58 x 2.79mm |
| Connection (Decimal Inch) | 0.141 x 0.11" |
| Useable Length (Decimal Inch) | 0.6460" |
| Neck Diameter (mm) | 2.64mm |
| Drill Size (Decimal Inch) | 0.1163" |
| Drill Size (mm) | 2.95mm |
| Useable Length (mm) | 16.41mm |
| Thread Series | M |
| Pitch Limit | D4 |
| Chamfer Length | 2P-3P |
| Finish | Bright |
| Blank Standard | 302A |
| Helix Angle (Degree) | 40 Degree |
| Number of Flutes | 3 |
| Tap Type | SPFL |
| Shank Type | Square |
| Coolant Through | No |
| Ring Color | Black |
| Trade Name | Combo Tap |
| Series | T5 |
| Material | HSS-EX |
| Product Type | Spiral Flute Tap |
