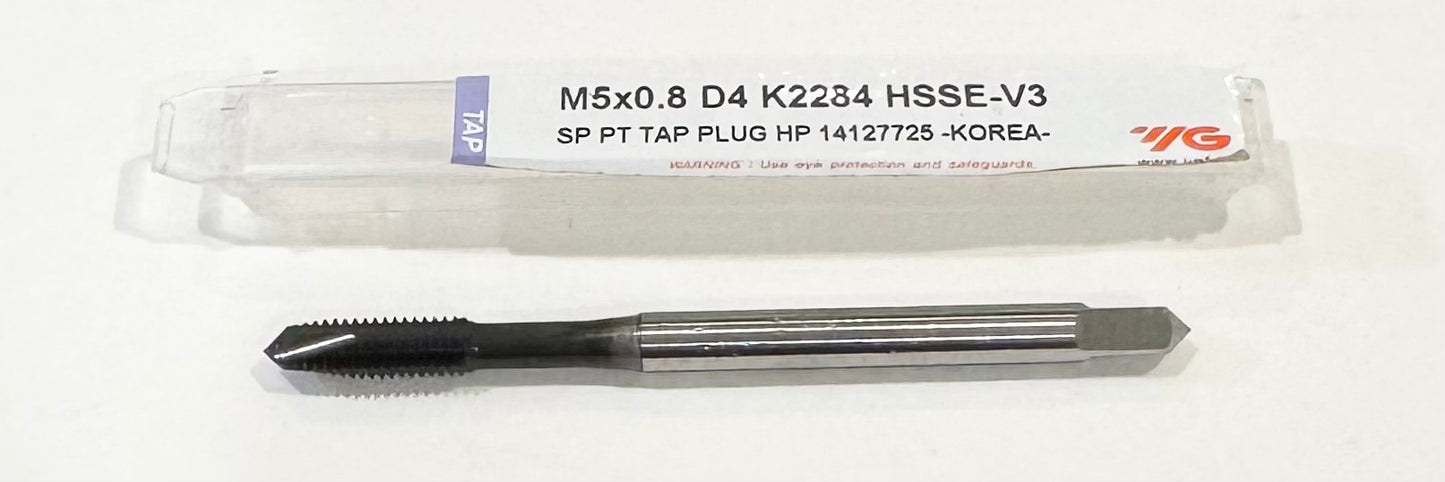

YG M5 x 0.8mm HSSE-V3 Spiral Point Plug Tap 3 Flute D4 HARDSLICK Coated
YG M5 x 0.8mm HSSE-V3 Spiral Point Plug Tap 3 Flute D4 HARDSLICK Coated
Regular price
$8.50 USD
Regular price
$0.00 USD
Sale price
$8.50 USD
Unit price
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 3 left
Couldn't load pickup availability
YG M5 x 0.8mm HSSE-V3 Spiral Point Plug Tap 3 Flute D4 HARDSLICK Coated
PRODUCT DESCRIPTION
| Description | Spiral Point Tap; M5 x0.8 mm x 2.756" OAL ; 3 FL ; HSSE-V ; Hardslick ; Metric ; | D4 | ; Series K2 |
|---|---|
| Brand | YG-1 Cutting Tools |
| Chamfer | 4P-5P |
| Coating | Hardslick |
| Connection Diameter Machine Side Dconms | 0.194" |
| Cutting Edge Material | HSSE-V3 |
| End Shape | Plug |
| Flute Count Nof | 3 |
| Length Group | 3xD |
| Measurement Type | Inch |
| Overall Length Oal | 2.756" |
| Serieslist | K2 |
| Thread Cutting Part Length THL | 0.531" |
| Thread Diameter Size TDZ | M5 |
| Thread Pitch TP | 0.8 mm |
| Thread Standard | M |
| Thread Tolerance Class TCTR | D4 |
| Tool Type | Spiral Point Tap |
